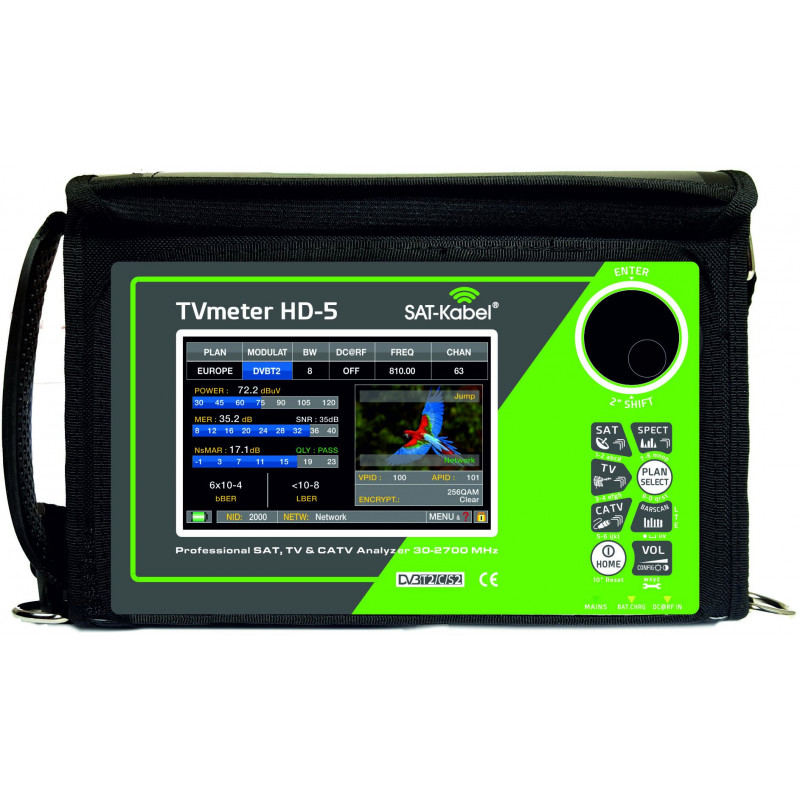

TVmeter HD-5
Professional HD analyzer for SAT/TV/CATV with 5" touchscreen.
Combination meter S/S2/T/T2/C
Including analog measurement (without image) T2 with HEVC 264/MPEG 4, without HEVC 265
Technical data:
MAIN FUNCTIONS
- Frequency range: TV, CATV and radio 30 – 1000 MHz; SAT 700 – 2,700 MHz
- Frequency resolution: TV and CATV 25 kHz, SAT 5 MHz
- Input impedance: 75 ohms (interchangeable “F” connectors)
- Digital measurements: Digital Power, MER (36 to 40 dB max.; depending on the modulation),
BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
- Analog measurements (without image): Analog Level, V/A ratio
- Power range measurements: TV 35 to 115 dBµV, SAT 5 to 105 dBµV
- Measurement resolution: 0.1 dB
- Measurement accuracy: 1 dB typ. (2 dB max.)
- Filter resolution bandwidth: TV and CATV: 100 kHz @ -3 dB SAT: 5 MHz @ -3 dB
- Net ID: Net-id, NID, TSID, LCN, SAT Orbit Position
- Spectrum with MAX HOLD: full spectrum and detection with real-time function
- Configuration: for TV/CATV and SAT signals
- Echoes, pre-echoes, micro-echoes: real-time display
- Quality: Digital Car Quality Test: PASS - MARGINAL FAIL
- Digital image display : MPEG2-4 SD & HD, images with program list, audio video PIDs, LCN,
video bitrate – all on one screen (DVB-T2 with H.264 MPEG-4 NOT H.265/HEVC (Germany);
- SAT memory plan: more than 2,000 transponders for satellites worldwide
- Custom channel plan: 25 (199 channels per plan), programmable cable,
satellite (or combined cable/satellite) television via PC or local keyboard
- Logger: Cable, SAT or combined with Stop & Go function
- Audio: AAC (with DOLBY PACKAGE)
- Exclusively patented AUTODISCOVERY system: automatically detects and selects analog and
digital COFDM/QAM TV signals in measurement and spectrum mode.
- Help function: automatically detects all signals with digital modulation SAT, TV and CATV
- Automatic assistant: Signal quality analysis, saving the channel scan
- Barscan TV and CATV: 10 to 100 channels on one screen
- Buzzer and signal-to-noise ratio: Real-time display of micro-interference – digital signals
- SAT DiSEqC, SCR, dCSS and antenna commands HD SATEXPERT function included
- Free SMART PC interface program and firmware upgrades
General Specifications
- 5 ” TFT TOUCH Display 16:9 Resolution High Resolution and High Brightness
- DC voltage at RF input 5 – 12 – 18 – 24 V, DC DiSEqC, SCR, dCSS.
- Battery: Li-Po battery, 2 to 4 hours runtime (depending on usage) and battery test function
- USB PC interface: for online software upgrades and memory plan management
- USB PC interface: for memory stick
- Case & Bag: Metal case, Easy Bag carrying case included.
- Weight: 1.4 kg. Dimensions: 25.5 x 13.0 x 4.0 cm (measuring device only)
*Additional options available upon request when ordering TVmeter.
